Wind Tunnel Simulation
A real-time CFD wind tunnel inside Unity. A GPU lattice-Boltzmann solver runs ~8 million cells live.
- Role
- Simulation Engineer
- Company
- Open source (MIT)
- Period
- 2026
- Status
- Open source
- ~8MCells in real time
- D3Q19LBM solver (TRT + WALE LES)
- Bit-exactReproducible runs
What I did
- Lattice-Boltzmann solver (D3Q19, TRT + WALE LES) in compute shaders, running ~8M cells in real time.
- Zero setup: any car mesh is voxelized, sealed and simulating within seconds. No manual meshing.

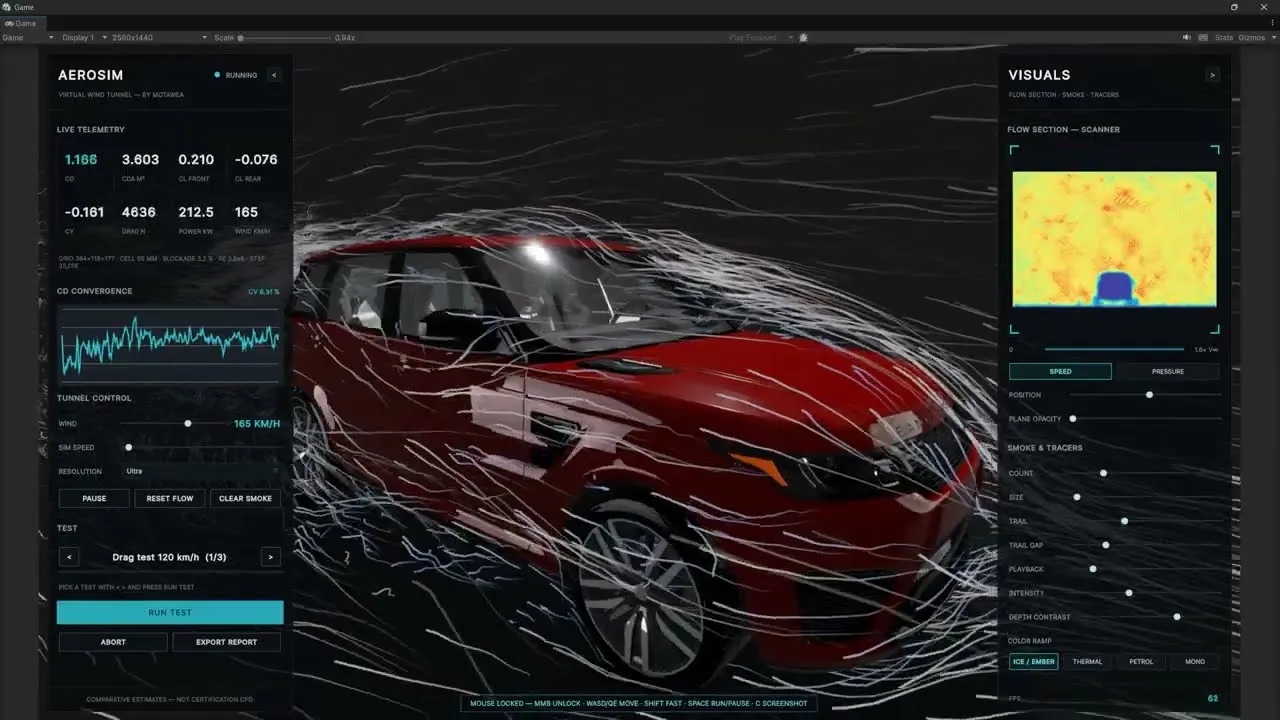

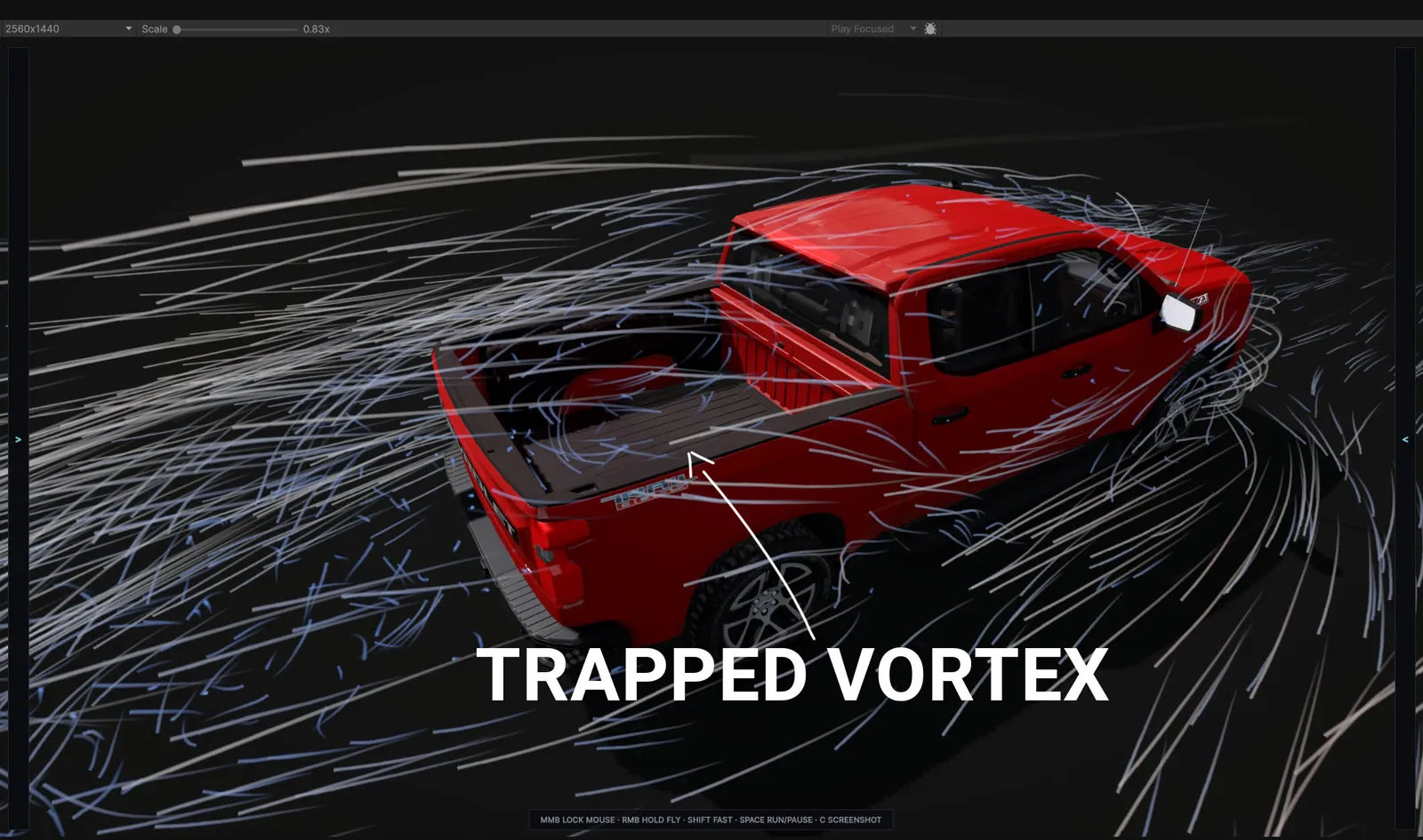

- Readable flow: live smoke streamlines, a scanning section plane, and force telemetry with convergence monitoring.

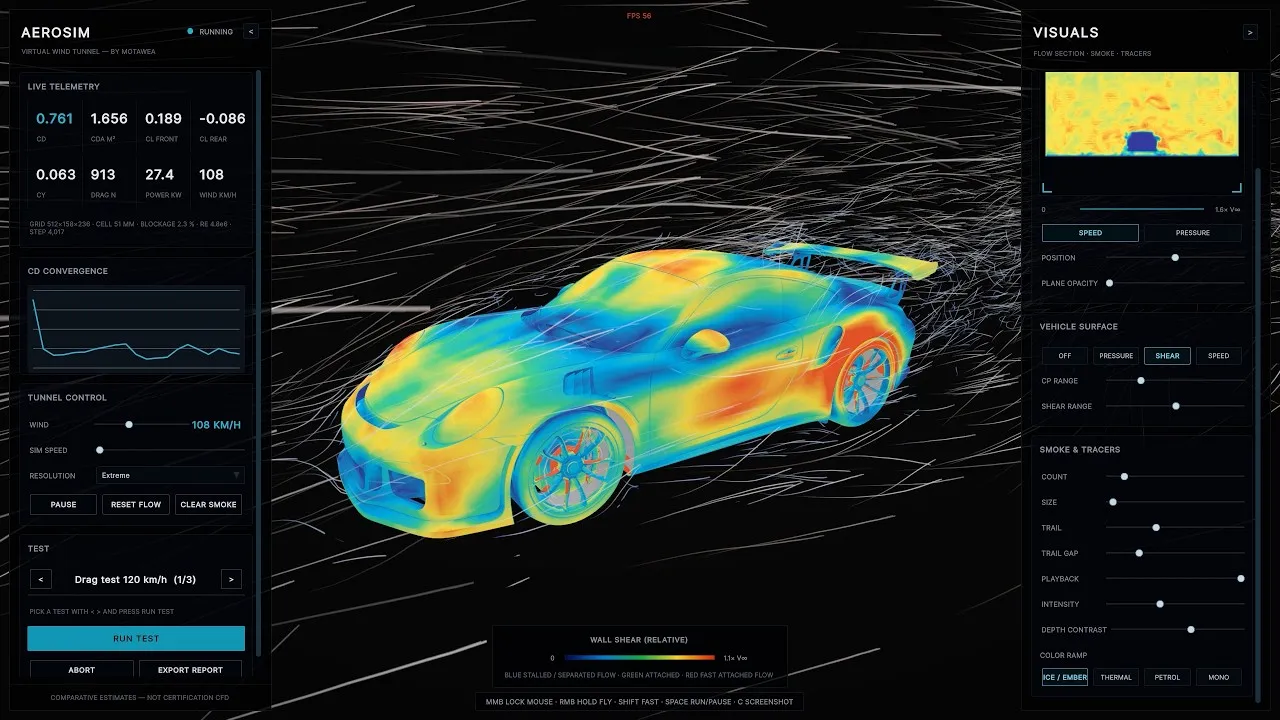

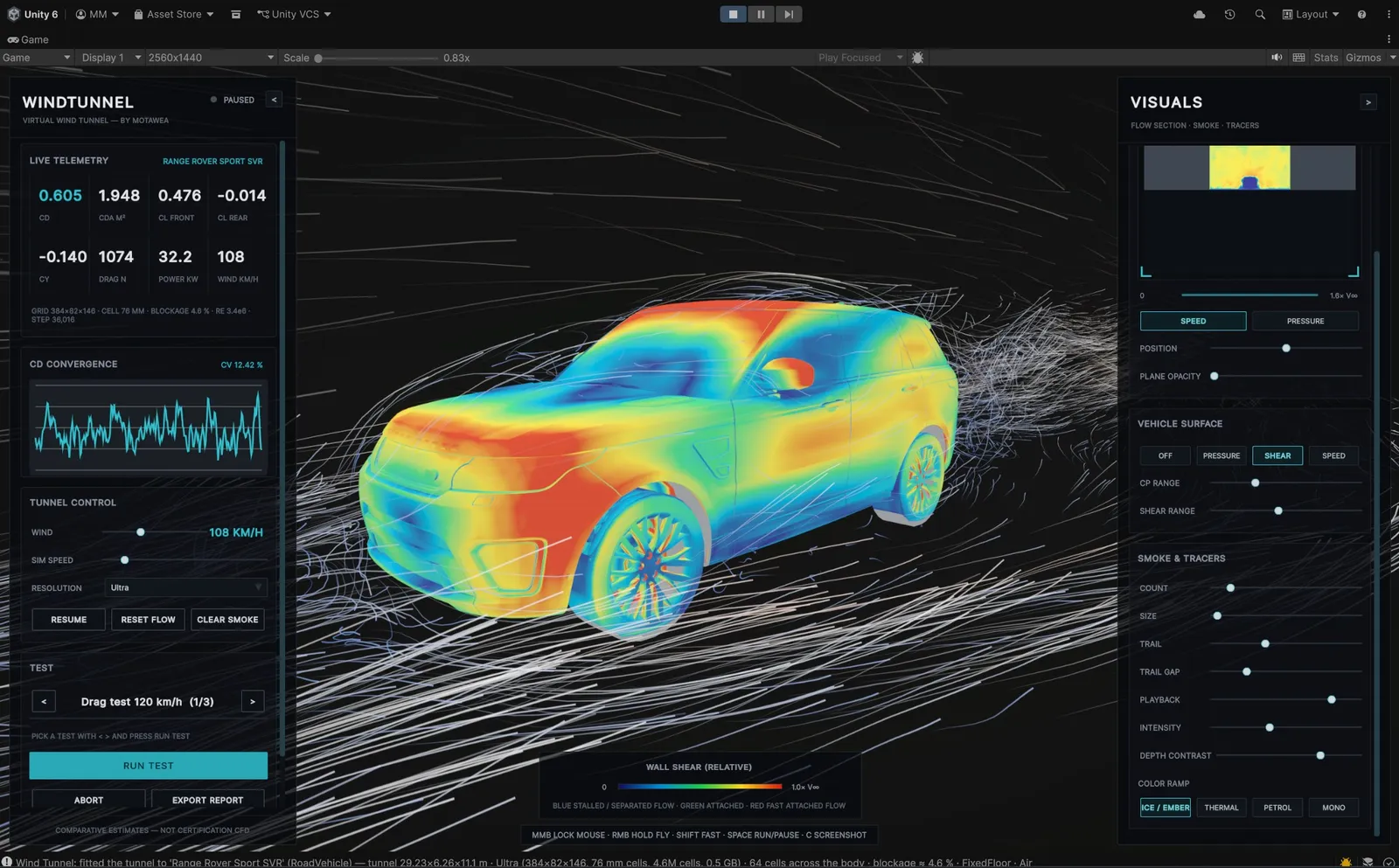

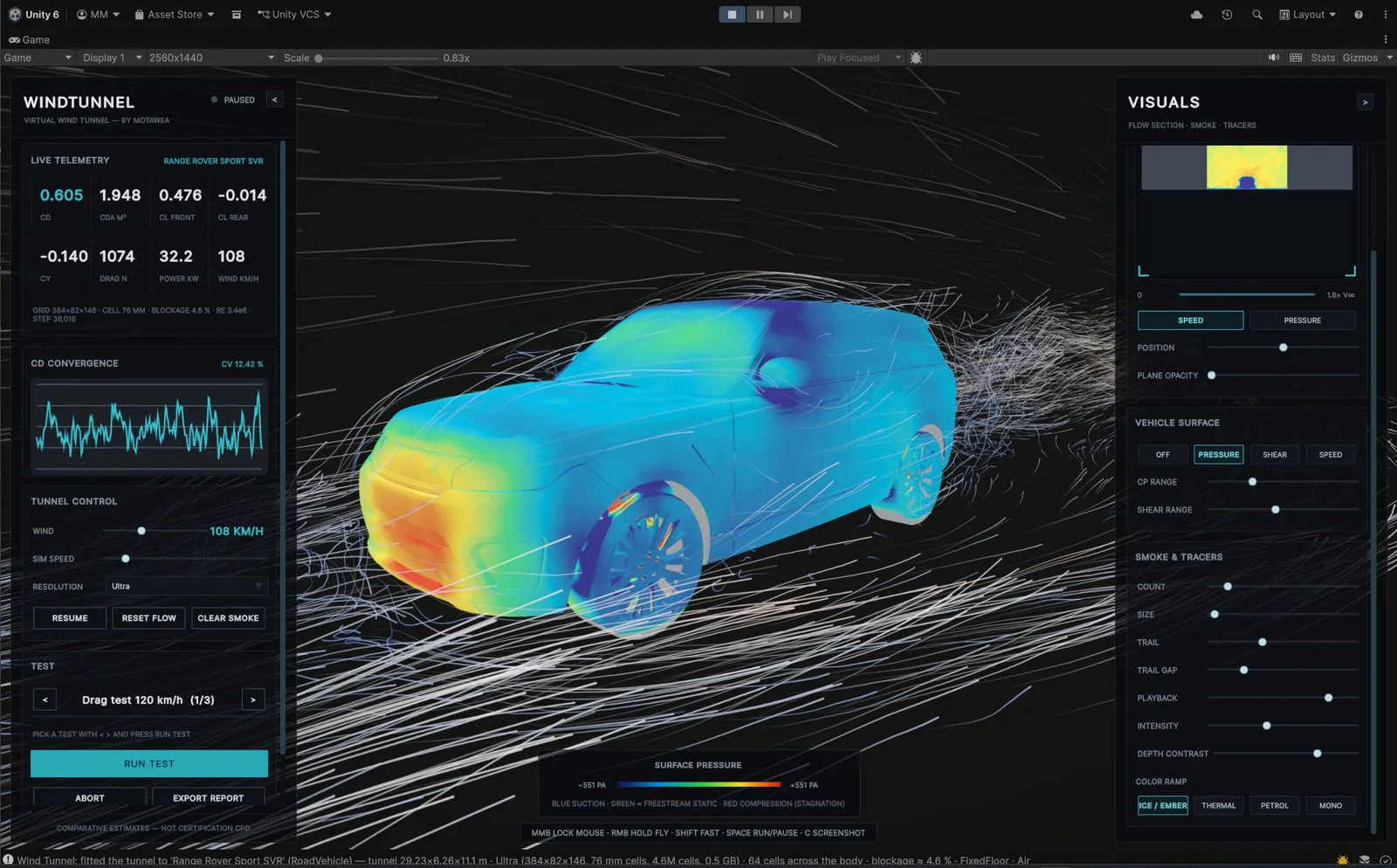

- Surface pressure and shear heatmaps painted on the body, read straight from GPU-resident fields at almost no cost.

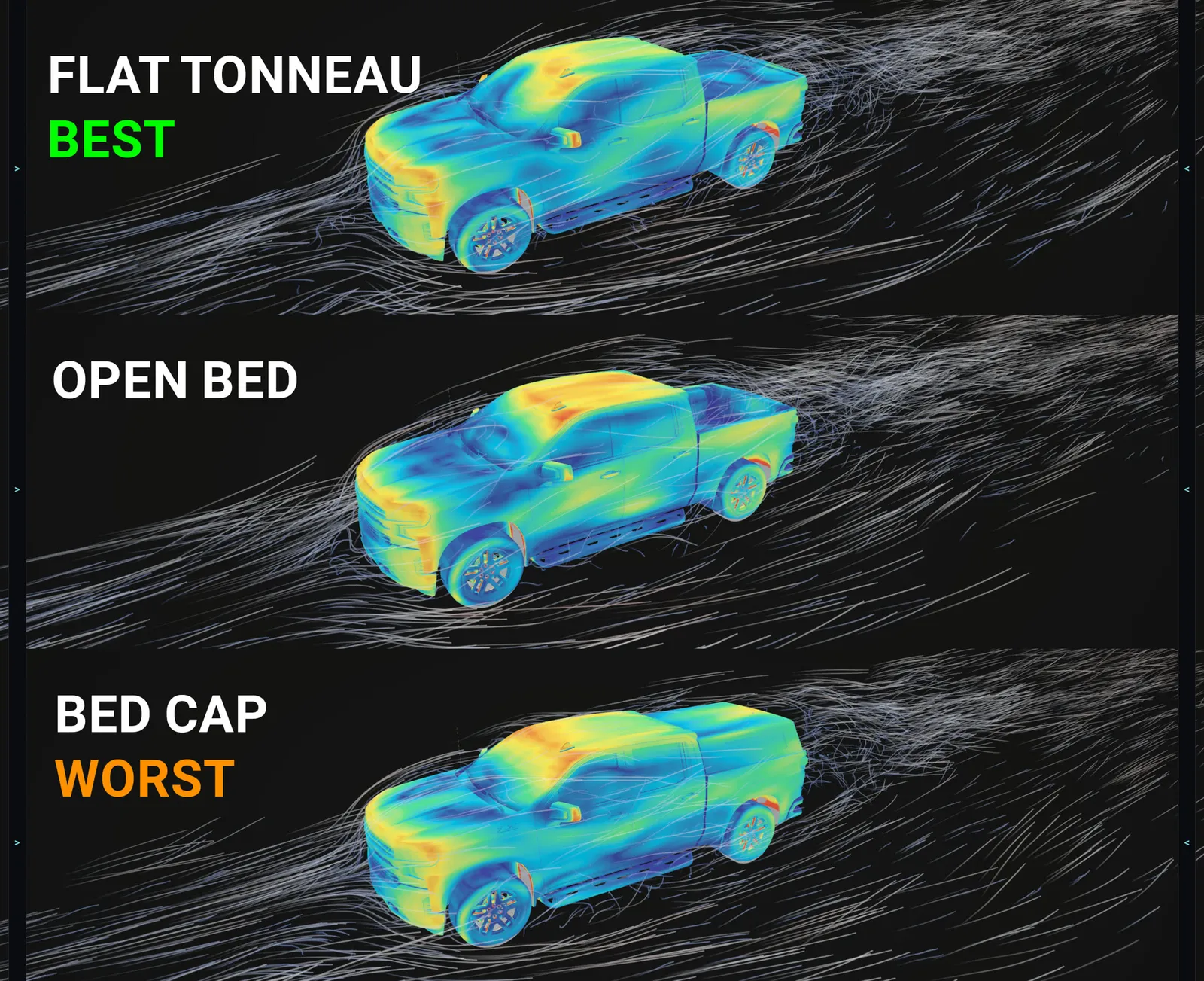

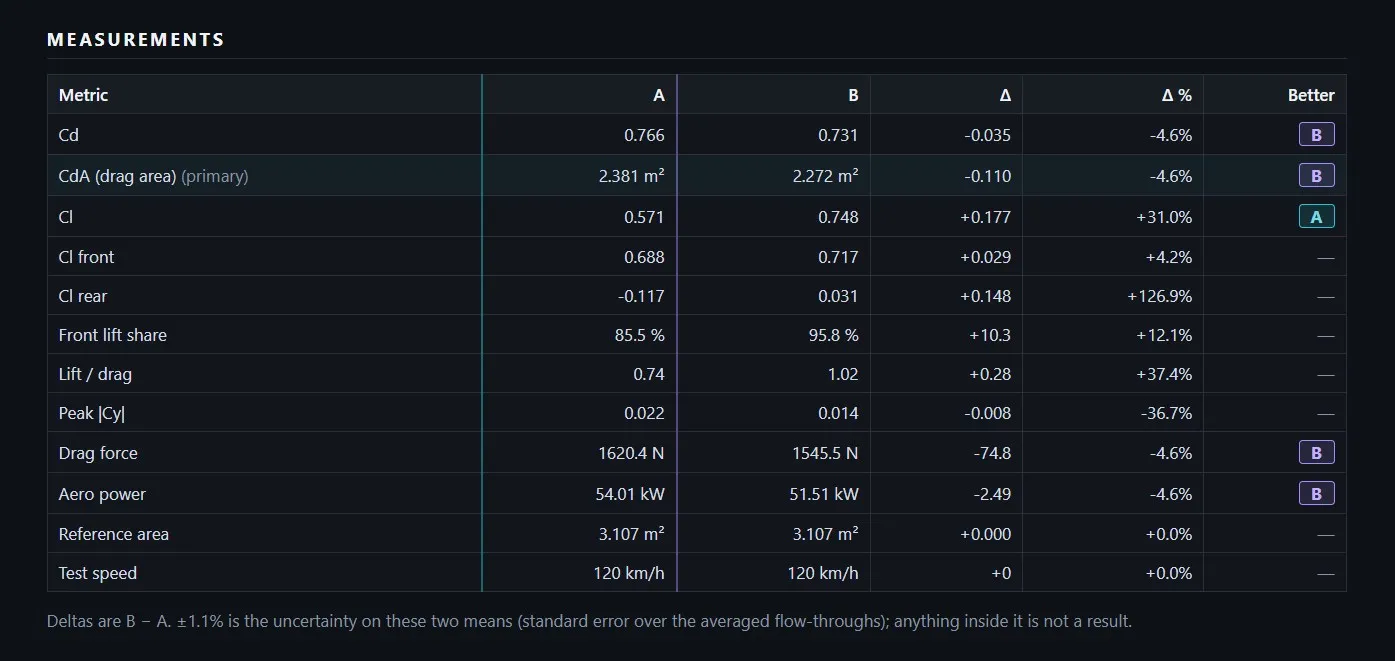

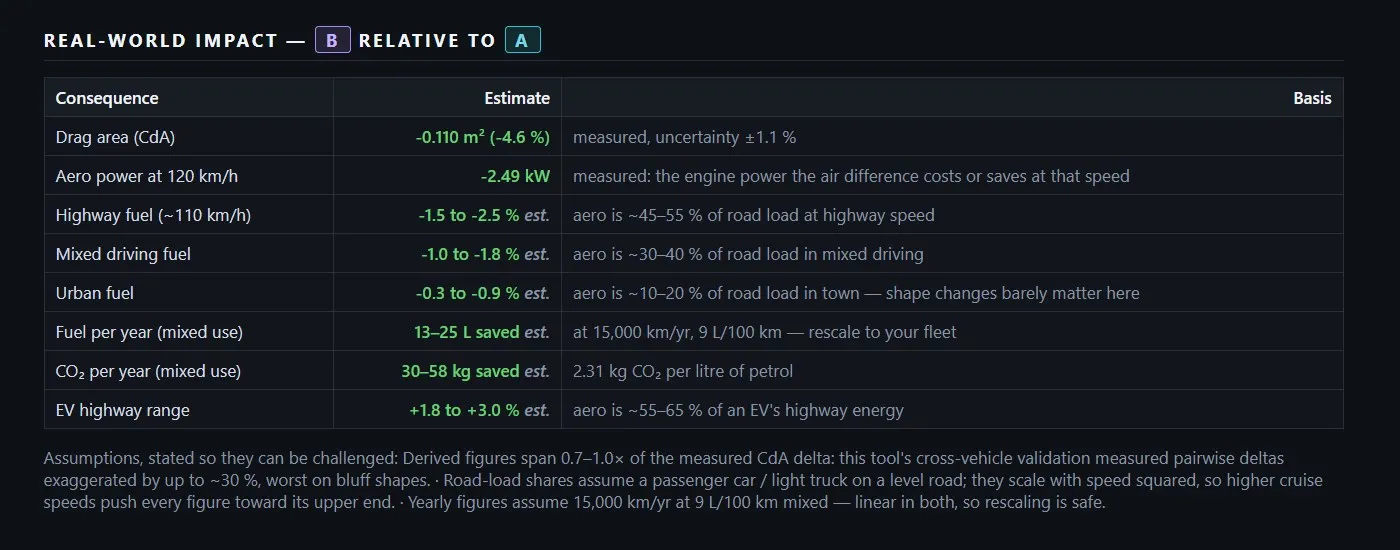

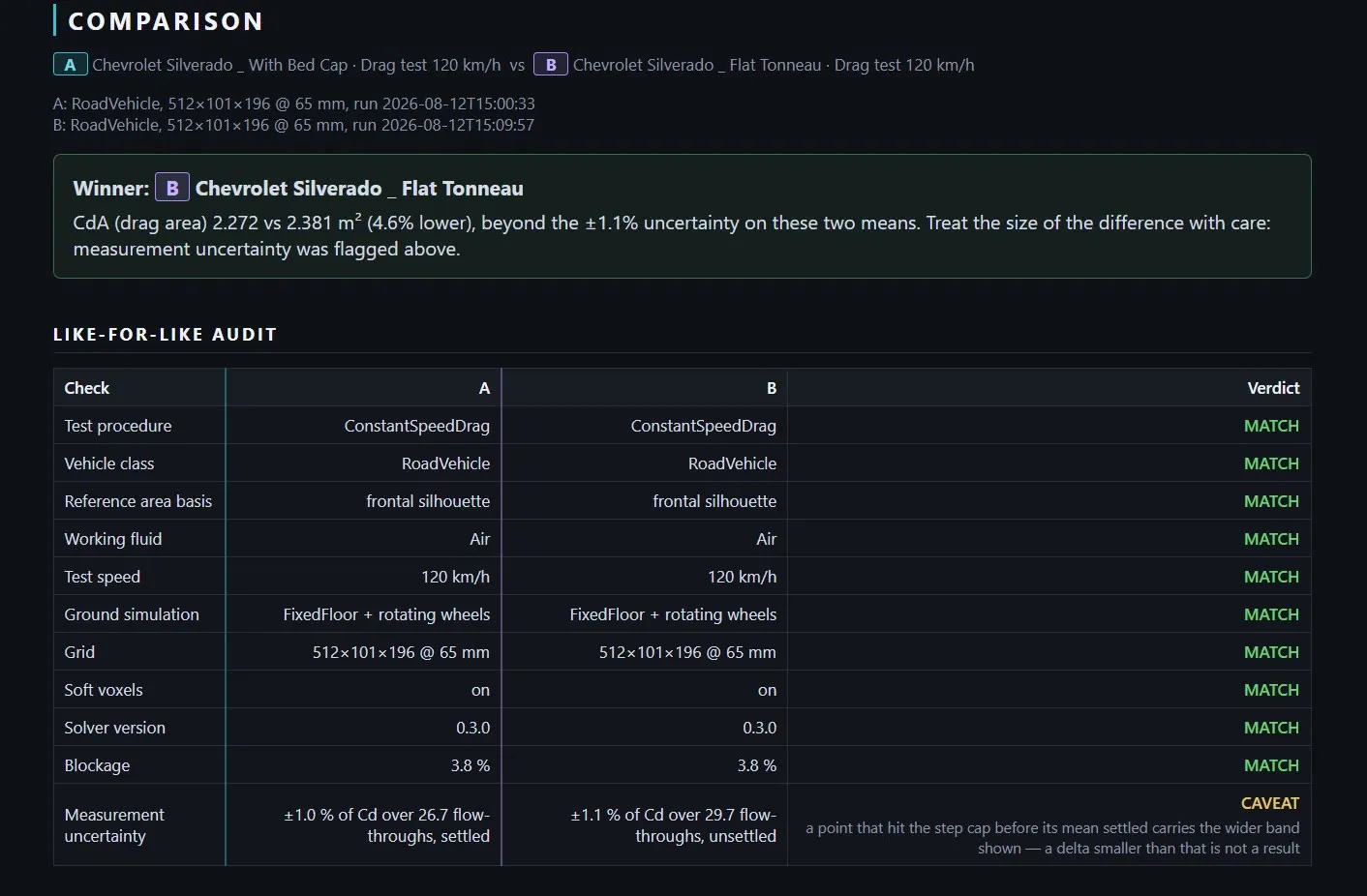

- A/B design comparison: like-for-like audit, measured delta with uncertainty band, and a fuel/range estimate.

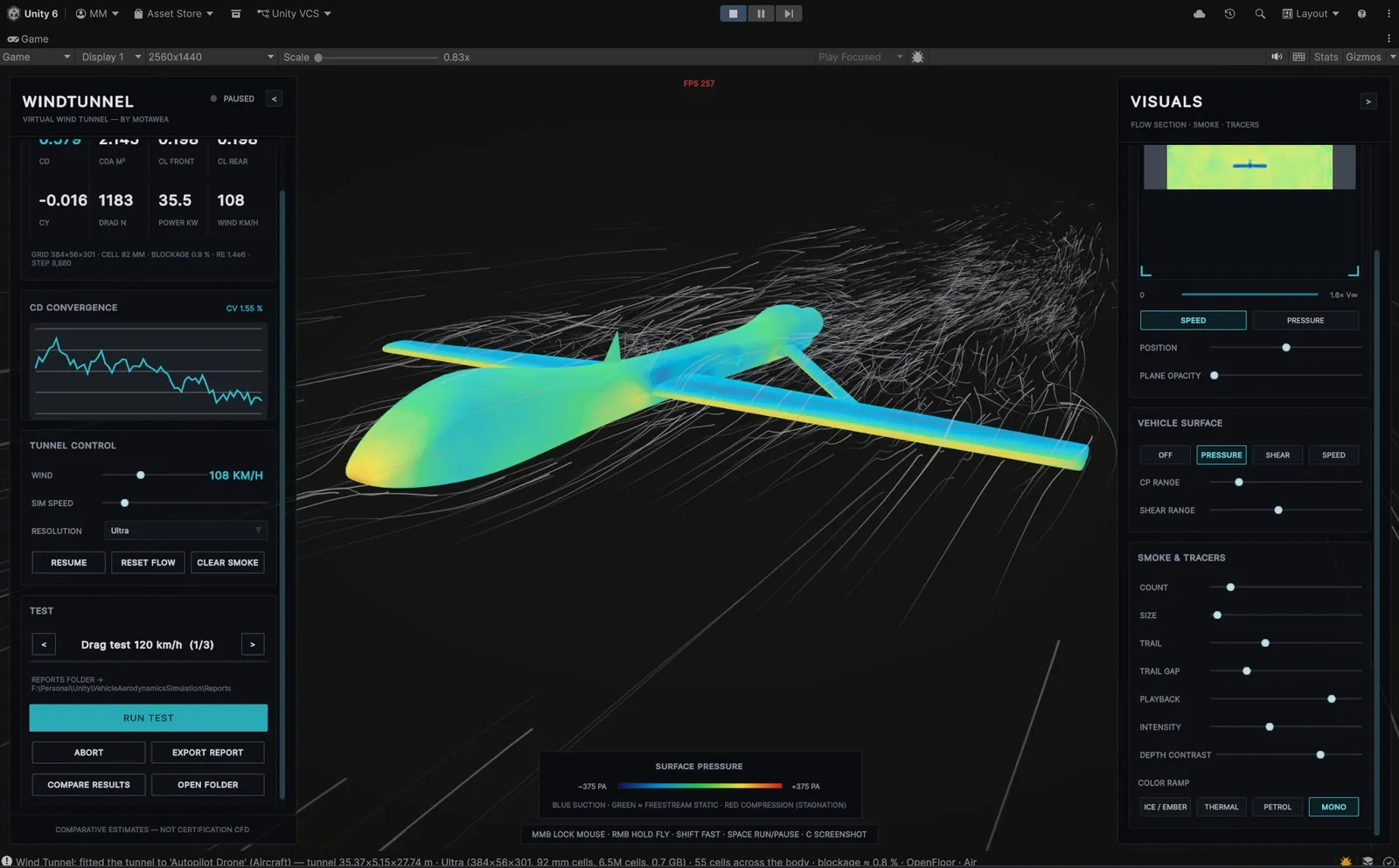

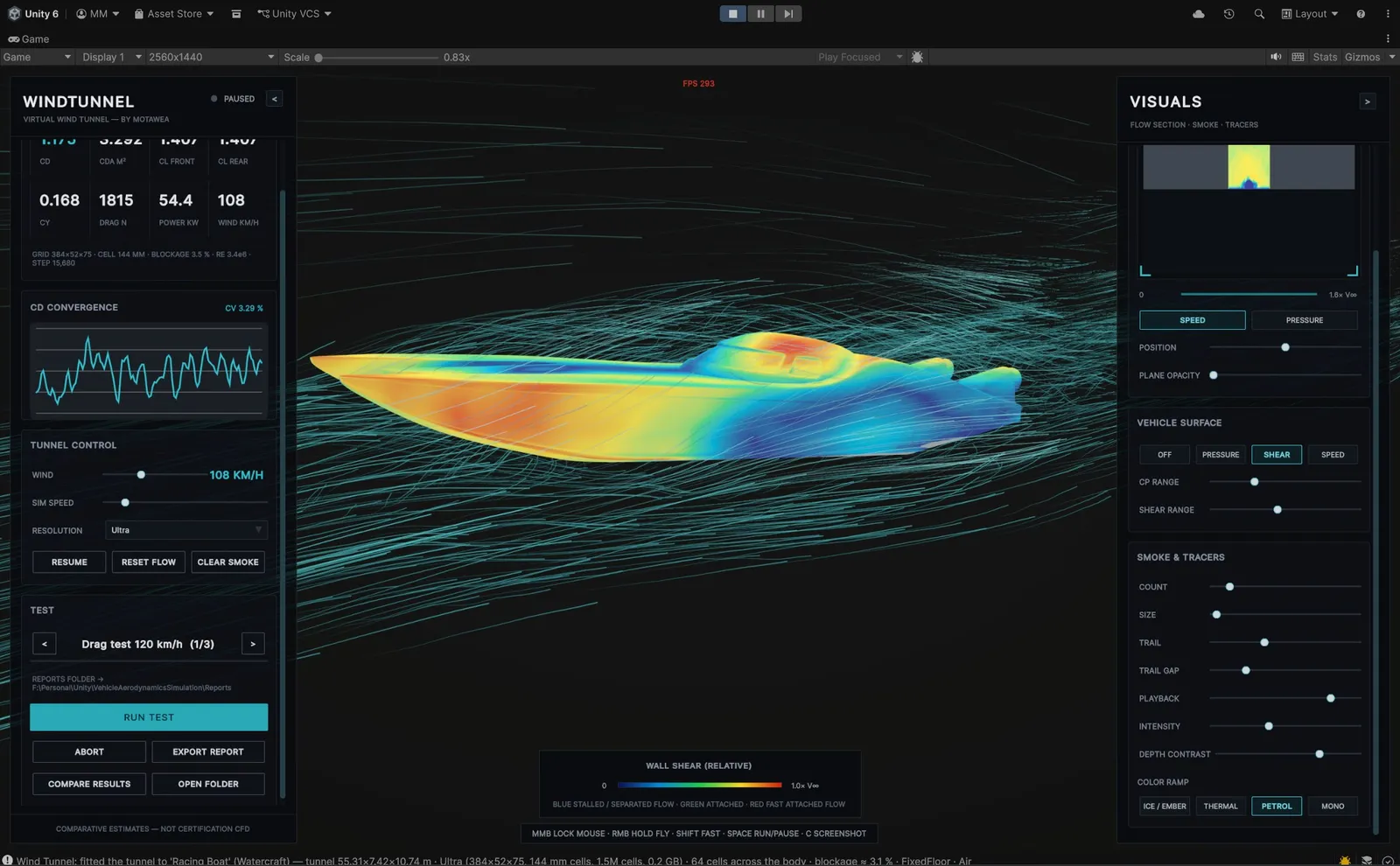

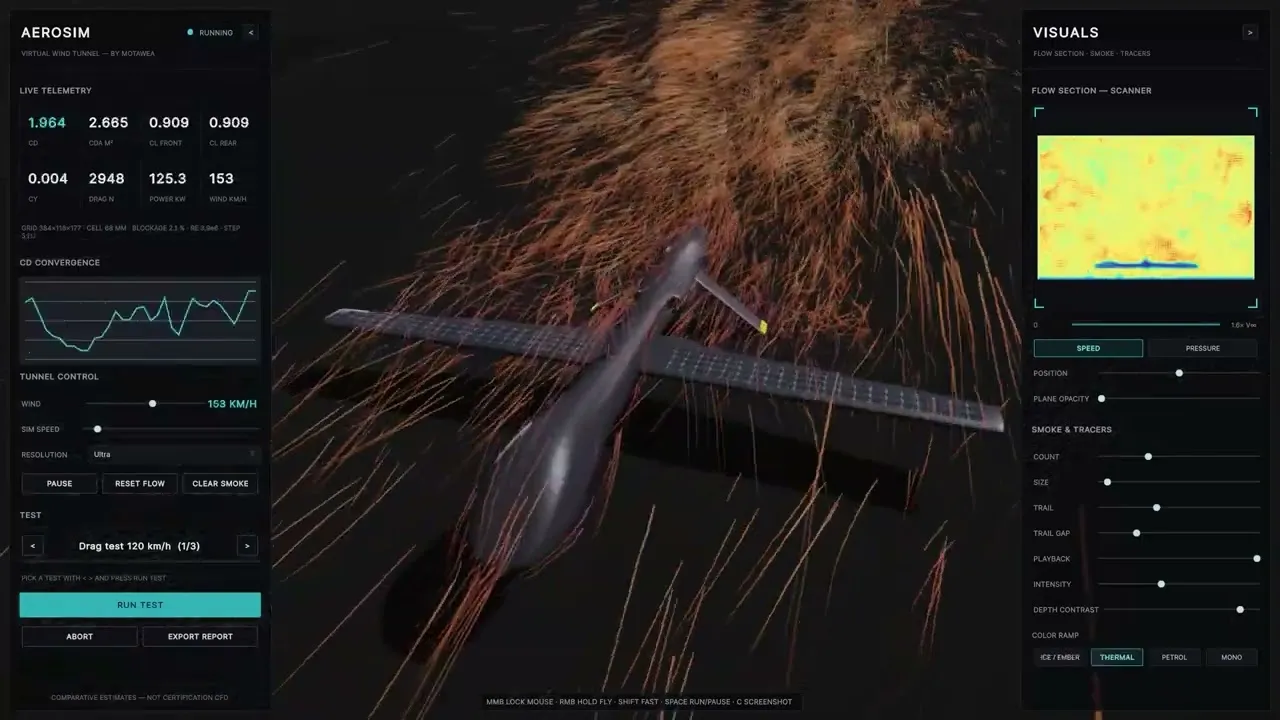

- Validated against textbook reference bodies to within a few percent. Yaw and ride-height sweeps run hands-free, and the domain re-fits for aircraft and watercraft.
